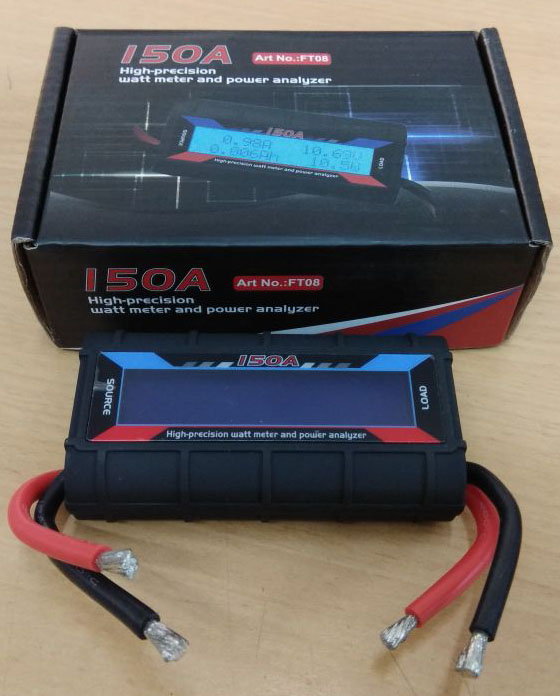

High Precision Watt Meter and Power Analyzer Maks 60V 150A - TEB-C0671
Description:
Item Name:Watt Meter & Power Analyzer
Features:
* Measures and displays key parameters for your elctric flight power set (battery, motor, ESC performance)
to help you avoid the possibility of burning out your power train components due to incorrect propellor selection.
* Cycles through the data until disconnected
* Tough rubberised casing
* Supplied with instructions
Typical applications:
* To assist with the correct selection of propellor
* To measure the actual values of current, voltage and power
* To prevent peak currents from damaging your battery, ESC, motor(s), wiring and connectors
* To verify the operating voltage of your flight pack under load and measure the quantity of charge drawn from the flight or drive battery.
* To confirm correct charger operation
Specification:
Item Name: Watt Meter and Power Analyzer
Operation Voltage: 4.8V-60V
Measures Range: 0-150A, resolution 0.01A;
0-60V: resolution 0.01v
0-6554W: resolution 0.1w
0-65Ah: resolution 0.001An
0-6441Wh: resolution 0.1Wh
LCD: 16 x 2: backlit LCD display
Size: 85 mm x 43 mm x 25 mm (3.35 in x 1.69 in x 0.98 in)
Weight: 82g
Color: Black
Package Included:
1 x Watt Meter Power Analyzer
|
